更省电、火色更均匀、烘烤时间更快、更耐用更保温 、蒸汽更稳定节能 、保固服务
| 分类型号/Classification type | HBVO-2003AIR | HBVO-3003AIR | HBVO-4003AIR |
|---|---|---|---|
| 烤盘数量/Tray Quantity |
2盘*3层=6盘 2Tray*3Deck=6Tray |
3盘*3层=9盘 3Tray*3Deck=9Tray |
4盘*3层=12盘 4Tray*3Deck=12Tray |
| 收容能力/Capacity |
600*400竖放 600*400vertical |
600*400竖放 600*400vertical |
600*400竖放 600*400vertical |

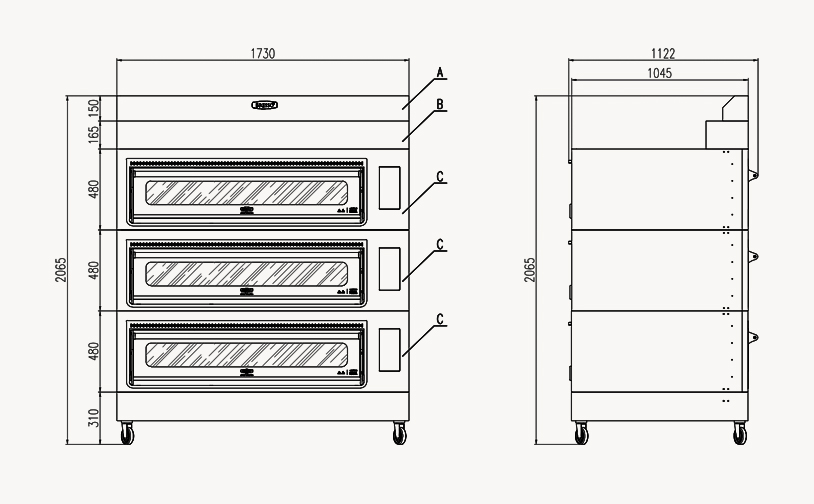

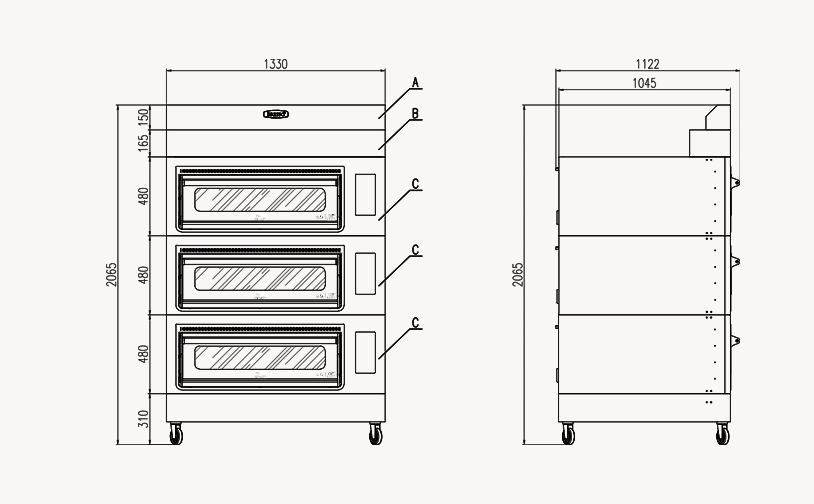

| 外形尺寸/Dimension | 1330X1045X2065mm | 1730X1045X2065mm | 1730X1368X2065mm |
| 电压及功率/Voltage and Power | 380V 3P+1N/5KW每层 | 380V 3P+1N/8KW每层 | 380V 3P+1N/9KW每层 |
| 有效温度/Steam Power |
室温~300℃ Room Temp.~300℃ |
室温~300℃ Room Temp.~300℃ |
室温~300℃ Room Temp.~300℃ |
| 蒸汽/Effective Temperature |
1~3层可独立或全部安装蒸汽，但必须有上水和排水 1～3 layer the steam can be installed indepently or entirely,water supply and drainage is a must |
||
| 石板/Steam and Stone |
1~3层可独立或全部安装石板 1～3 layer the stone can be installed indepently or entirely |
||
| 参考事项/Reference matters |
每层买入数及层数要求规格变更可订做 Decks and trays can be customized |
||
